Welcome to the openELISPOT build-guide!
This site will guide you step-by-step through the openELISPOT build.
We highly recommend you follow these instructions in order, and that you familiarise yourself with the guide in its entirety before starting.
While we have been able to print, assemble and set up openELISPOT within a day, if it’s your first time taking on a project like this, we recommend setting aside a few days for total assembly time. Feel free to proceed at a comfortable pace for you, and reach out to our community Discord server if you need help along the way.
What you will need
A list of tools required such as screwdrivers, crimping tools and connectors etc. Many of these tools can be used for other projects too!
Basic skills and tips
A collection of useful guides for beginners, including soldering, crimping wires and handling electronics.
Bill of materials (BOM)
A list of items that you will need to source to build openELISPOT.

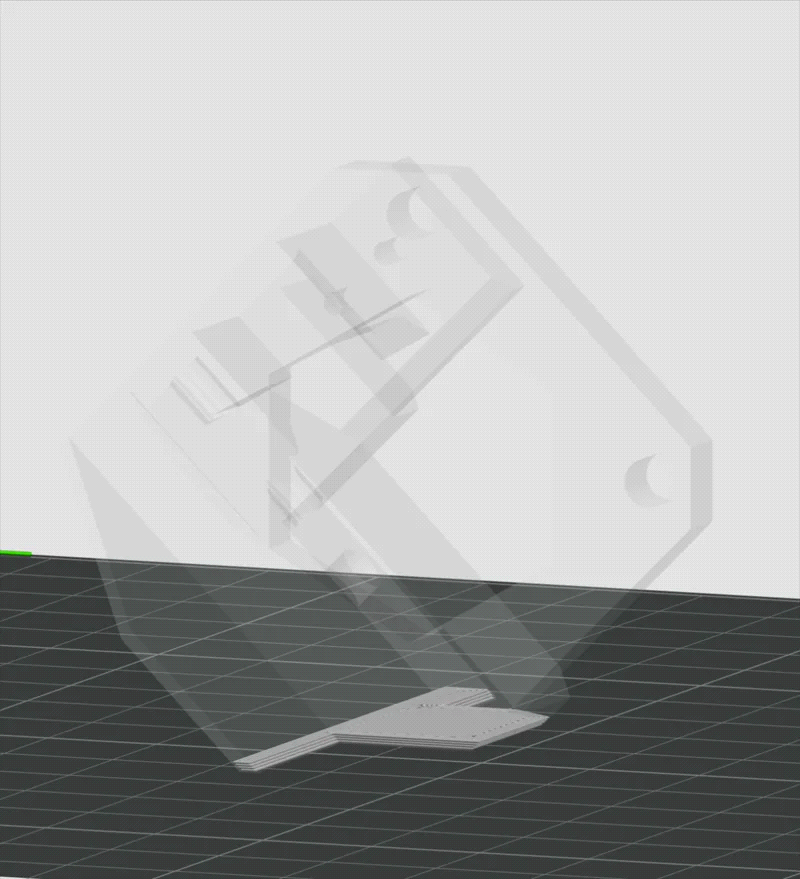

Printed parts
While openELISPOT components are designed to be easily FDM 3D printed, this guide will enable you to get the best out of your prints.
Y Axis assembly
So you now have everything you need to get started. Let’s begin with the Y axis!
Electronics – wiring
Wiring diagrams to help you understand how everything connects together, and helpful cable length guides to make cable management easier.
Software setup
You’re almost there!
